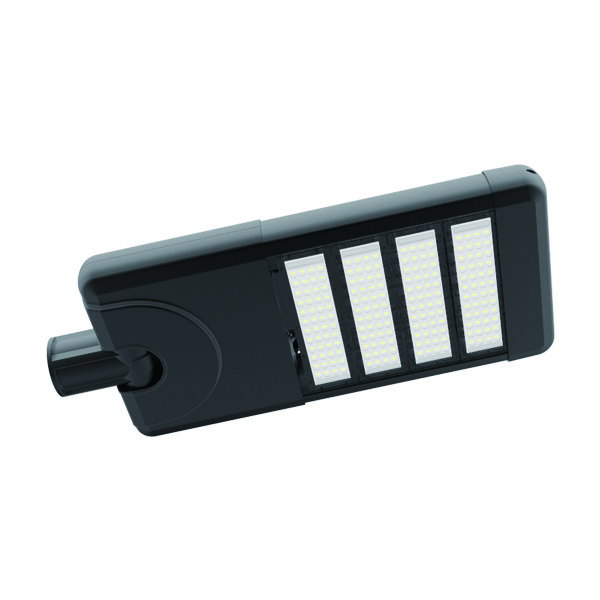

22500 Lumens 150 Watt 277V Outdoor LED Street Lights

Product Categories
JIANGSU DALITE ELECTRICAL TECHNOLOGY CO.,LTD
Contact Now

22500 Lumens 150 Watt 277V Outdoor LED Street Lights

Brand Name : DALITE

Model Number : LLDL-803

Certification : CE

Place of Origin : CHANGZHOU CITY CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 40000sets/month

Delivery Time : 2-6 weeks

Packaging Details : Form + Carton

Rated Power : 30-240W

Efficiency @3030 : >150LM/W

Efficiency @5050 : >160LM/W

CCT : 3000-6500K

IP rating : IP67

Impact Resistance : IK09

Contact Now

Certification of CE, Waterproof IP67, Anti-Impact IK09, LED street lighting, LLDL-803,Outdoor LED Street Lights

Code : LLDL-803

The Most Comprehensive & High Efficiency Led Light Solution
Key advantages

  • LED modules with flexible combinations of LEDs
  • Separate LED modules for better heat dissipation
  • Vavious luminous efficiecy on options 160 lm/w Max
  • PC lens Protector,for IP67 Max
  • Two fixing system:Post top or Side-entry mounting
Characteristics
Code LLDL-803-30W LLDL-803-60W LLDL-803-90W LLDL-803-120W LLDL-803-150W LLDL-803-180W LLDL-803-210W LLDL-803-240W LLDL-803-270W
Size(D*W*Hmm) 502*346*120 582*346*120 662*346*120 742*346*120 822*346*120 902*346*120 982*346*120 1062*346*120 1142*346*120
Rated Power 30W 60W 90W 120W 150W 180W 210W 240W 270W
Efficiency @3030 150LM/W
Efficiency @5050 160LM/W
Luminous Flux@3030 3500LM 9000LM 13500LM 18000LM 22500LM 27000LM 31500LM 36000LM 40500LM
Luminous Flux@5050 4800LM 9600LM 14400LM 19200LM 24000LM 28800LM 33600LM 38400LM 43200LM
Beam Angle T2/T3/T4/T5
CCT 3000-6500K
CRI Ra>70
Input Voltages 120-277V
Frequency 50-60Hz
Power Factor >0.95
Protection Index IP67
Impact Resistance IK08

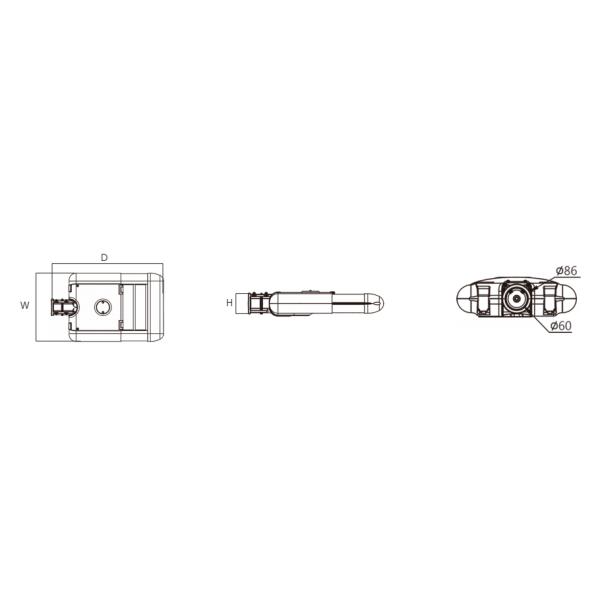

Dimensions
22500 Lumens 150 Watt 277V Outdoor LED Street Lights
Photometric Distributions
22500 Lumens 150 Watt 277V Outdoor LED Street Lights
Application example
22500 Lumens 150 Watt 277V Outdoor LED Street Lights
